MipoxProbe Card Cleaning Film

BC3 Type

PET material provides exceptional durability and cleanliness, making it perfect for sensitive electronic components. Regular use of these cleaning sheets extends the lifespan of probe cards and prevents signal interference during testing. Investing in high-quality PET probe card cleaning sheets allows semiconductor manufacturers to streamline testing procedures and boost overall productivity. Maintain your equipment in top condition with these dependable cleaning sheets.

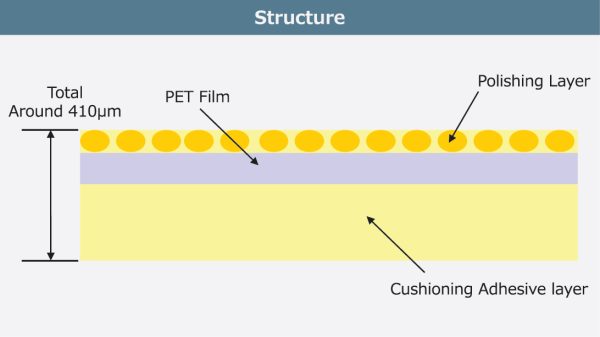

· Construction: Lapping Film and Cushioning Adhesive layer
· Low damage and highly efficient cleaning
· It is recommended for Cantilever Type and Round Pins

Description

Key Features

DescriptionBase MaterialAbrasive MaterialAbrasive Material (μm)Sheet ColorAdhesive
GC4000-BC3 FEZ-CPET + Formed PolyurethaneSilicon Carbide3GrayAdhesive Type ~80°C
GC6000-BC3 FEZ-BPET + Formed PolyurethaneSilicon Carbide2Gray
GC8000-BC3 FEZ-APET + Formed PolyurethaneSilicon Carbide1Gray
GC10000-BC3 FEZ-CPET + Formed PolyurethaneSilicon Carbide0.5Gray
